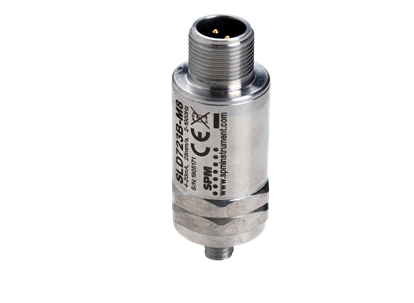

Vibration transmitters
The transmitters provide a 4-20 mA output signal proportional to the vibration velocity, across its frequency range. The output signal can be transmitted to common process control systems like PLC, DCS, and SCADA. The transmitters operate using power from any standard 4-20 mA loop. No additional power is necessary.
Features of the transmitters are unique microcontroller design and calibration data stored in the sensor. All transmitters come with a top connector for fast and easy installation.
NEED AN EX VERSION?
By clicking “Submit”, you agree that your message and personal details will be sent by email to relevant recipient(s) at SPM Instrument. You hereby also agree that SPM Instrument and its subsidiaries will have access to the information you have provided and that these data will be stored on our email server. The data will not be saved in any other way. We will not use this information to contact you about matters other than those specified in your request. We will not share your information with third parties.
Technical overview
Our vibration transmitters come in a variety of sizes, configurations, and specifications to match your needs. All transmitters are internally isolated and have an operating temperature range of −40 to +85 °C (−40 to +185 °F). The frequency range is specified for the transmitter when permanently installed. The measuring results will be affected at higher frequencies when using a magnetic foot.
Connection alternatives:
TB = 2-pin connector MIL-C-5015
TCP = Integral cable (3, 5, 10, or 20 m) with an adapter for protection tube
4-20 mA vibration transmitters with top entry/cable
Part number |
Ex |
Mounting thread |
Connection |
Frequency range |
Sensitivity |
| SLD722 | - | M8 tapped hole for mounting stud* | TB, TCP | 2-1000 Hz | 0-12.5 mm/s |
| SLD723 | - | M8 tapped hole for mounting stud* | TB, TCP | 2-1000 Hz | 0-25 mm/s |
| SLD724 | - | M8 tapped hole for mounting stud* | TB, TCP | 2-1000 Hz | 0-50 mm/s |
| SLD732 | - | M8 tapped hole for mounting stud* | TB, TCP | 10-1000 Hz | 0-12.5 mm/s |
| SLD733 | - | M8 tapped hole for mounting stud* | TB, TCP | 10-1000 Hz | 0-25 mm/s |
| SLD734 | - | M8 tapped hole for mounting stud* | TB, TCP | 10-1000 Hz | 0-50 mm/s |
| SLD822 | Ex | M8 tapped hole for mounting stud* | TB, TCP | 2-1000 Hz | 0-12.5 mm/s |
| SLD823 | Ex | M8 tapped hole for mounting stud* | TB, TCP | 2-1000 Hz | 0-25 mm/s |
| SLD824 | Ex | M8 tapped hole for mounting stud* | TB, TCP | 2-1000 Hz | 0-50 mm/s |
| SLD832 | Ex | M8 tapped hole for mounting stud* | TB, TCP | 10-1000 Hz | 0-12.5 mm/s |
| SLD833 | Ex | M8 tapped hole for mounting stud* | TB, TCP | 10-1000 Hz | 0-25 mm/s |
| SLD834 | Ex | M8 tapped hole for mounting stud* | TB, TCP | 10-1000 Hz | 0-50 mm/s |
* The mounting studs are available with thread sizes M6, M8, M10, and UNF 1/4″.
Installation materials
Connectors, cables, and service box
We offer a wide range of connectors in composite or stainless-steel material. Composite material provides benefits such as vibration dampening and weight reduction, while stainless steel can withstand mechanical forces and works both in high and low temperatures, etc.
There are different types of cables for our connectors, and to further secure the installation, we supply uncovered, acid-proof stainless steel conduits. These are protective covers slipped onto the cable and fixed to the transducer at the connector. Stainless steel cable clips are available for holding the conduit. For the protection of cable joints from moisture and water, a stainless, acid-proof steel service box is available.
Contact your SPM representative to learn more and discuss your needs.
