UNIQUE CONDITION MONITORING EFFICIENCY

Leonova Diamond is a dependable and highly potent analysis tool, addressing all of your condition monitoring needs. It offers a full and wide range of sophisticated measuring techniques as well as all the supporting diagnostic and troubleshooting capabilities. The instrument efficiently and reliably handles different machine characteristics and variable running conditions. State-of-the-art digital technology and careful software design enable superior data acquisition and processing. For use in hazardous areas and hostile environments, an intrinsically safe version is available.

Leonova Diamond offers highly sophisticated vibration measurement and shock pulse measurements with the patented HD Technologies, providing razor-sharp spectrums even where signals are weak and low in energy content. The instrument’s excellent signal-to-noise ratio gives a decisive advantage where weak signals are present among stronger signals, such as in gearboxes.

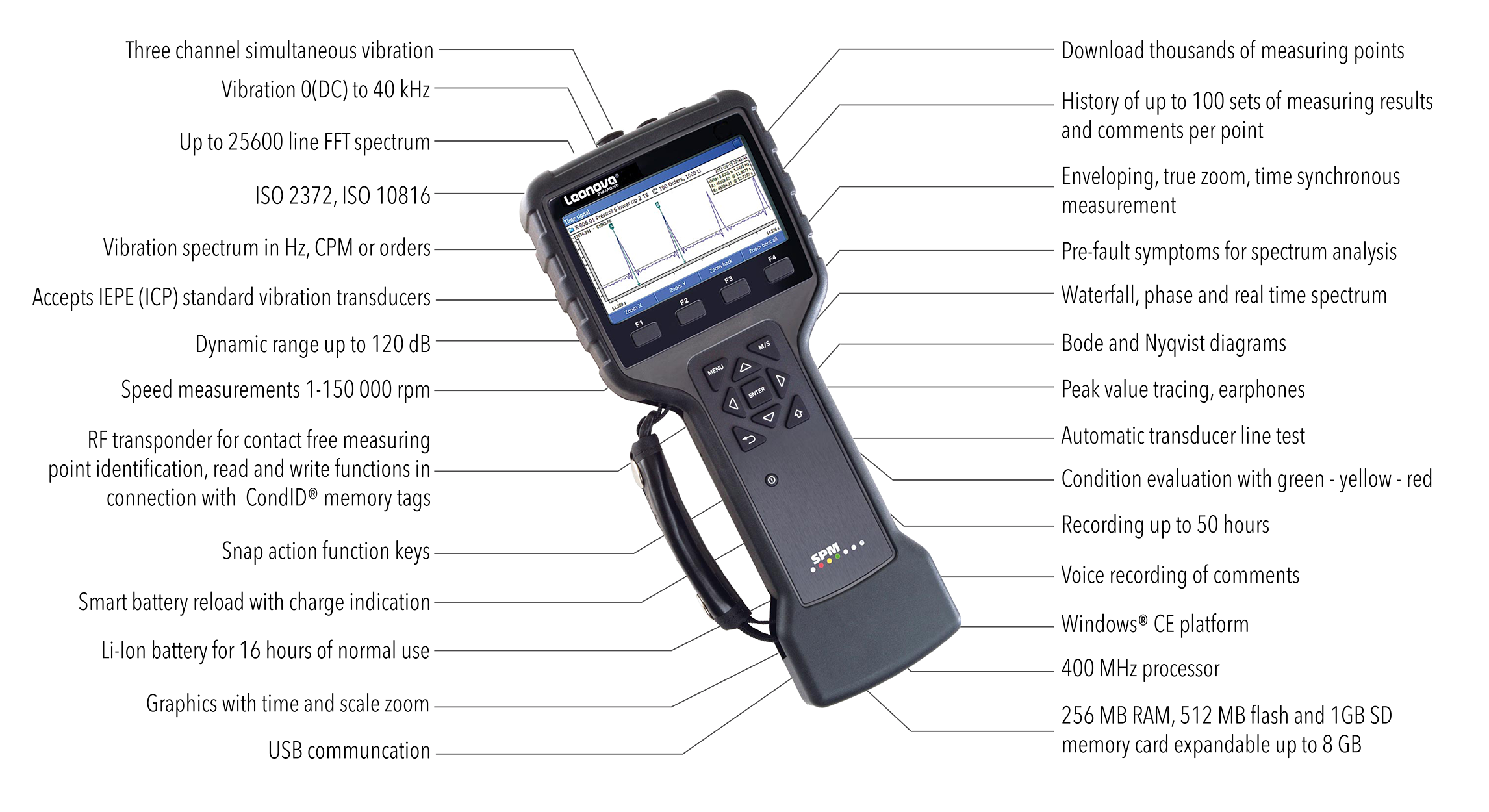

Leonova Diamond is part of the Leonova line of portable instruments and sibling to Leonova Emerald®.

QUOTES FROM OUR CUSTOMERS

“We were looking for a supplier who could solve the specialized problems of our clients regarding slow turning machinery. We also wanted a software platform that was analysis friendly. But the most principal factor in our decision to buy the Leonova Diamond was the HD technology. It will allow us to provide better service for our clients.”

Bárður Heinason, Machine technician, MEST Shipyards

By clicking “Submit”, you agree that your message and personal details will be sent by email to relevant recipient(s) at SPM Instrument. You hereby also agree that SPM Instrument and its subsidiaries will have access to the information you have provided and that these data will be stored on our email server. The data will not be saved in any other way. We will not use this information to contact you about matters other than those specified in your request. We will not share your information with third parties.

SPM Spectrum™

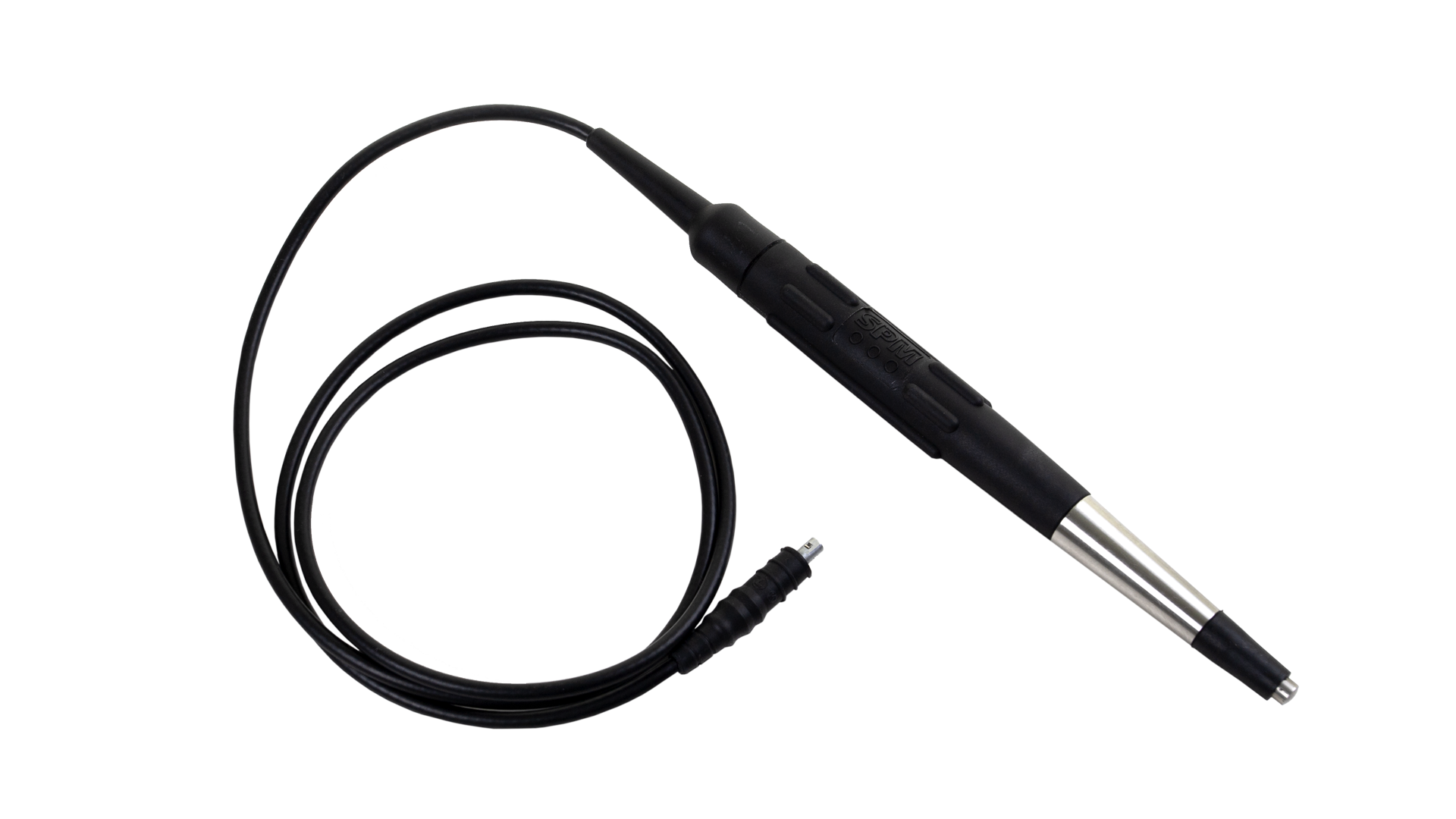

dBm/dBc

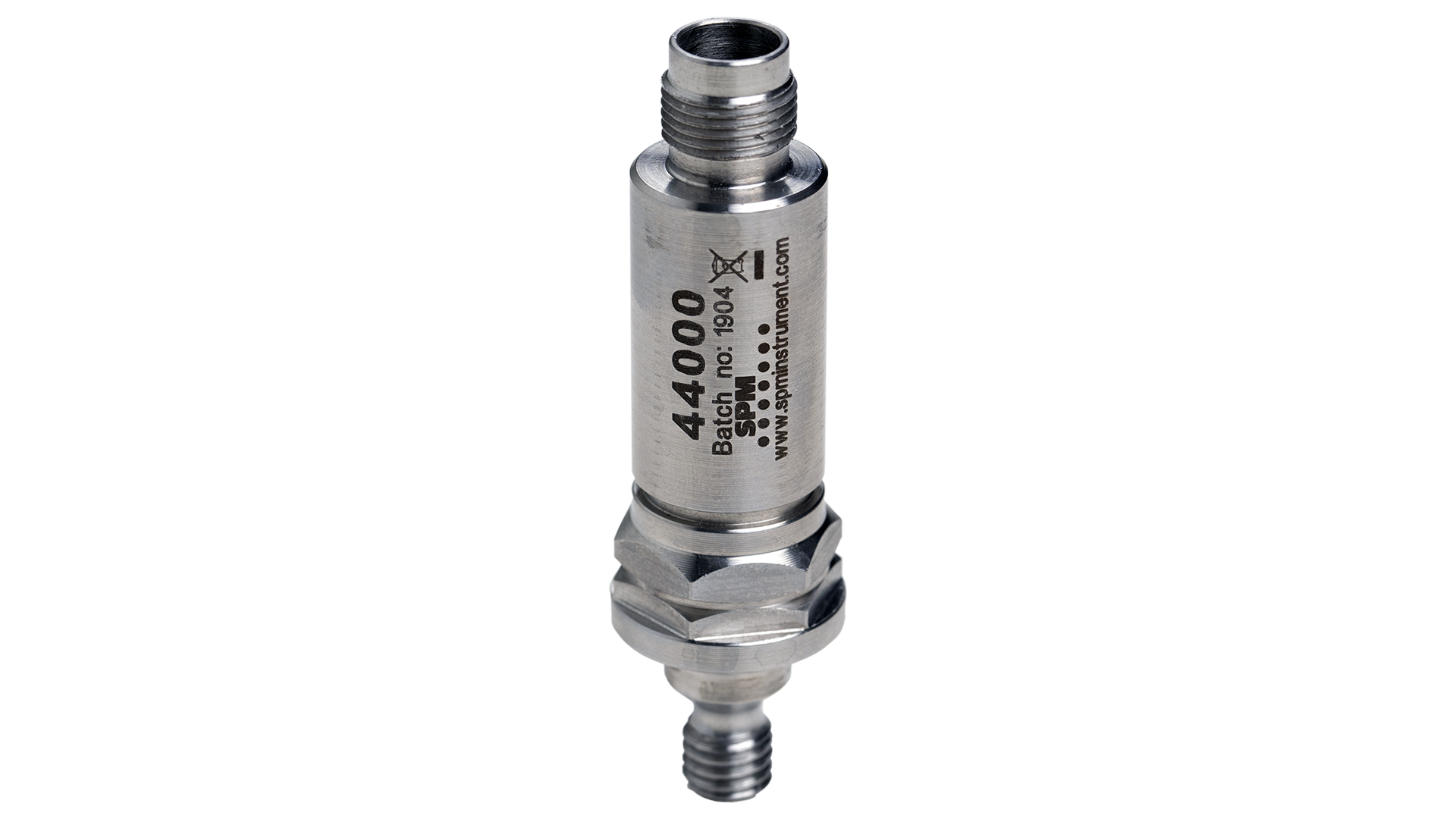

The original Shock Pulse Method is based on dBm/dBc which counts the rate of incoming shock pulses per second and provides one value for the shock carpet level and one value for the maximum level (peaks).

LR/HR

The LR/HR method was developed from the original Shock Pulse Method for condition diagnosis of rolling element bearings and allows a precision analysis of oil film condition in the rolling interface.

Vibration analysis

The HD ENV® technique

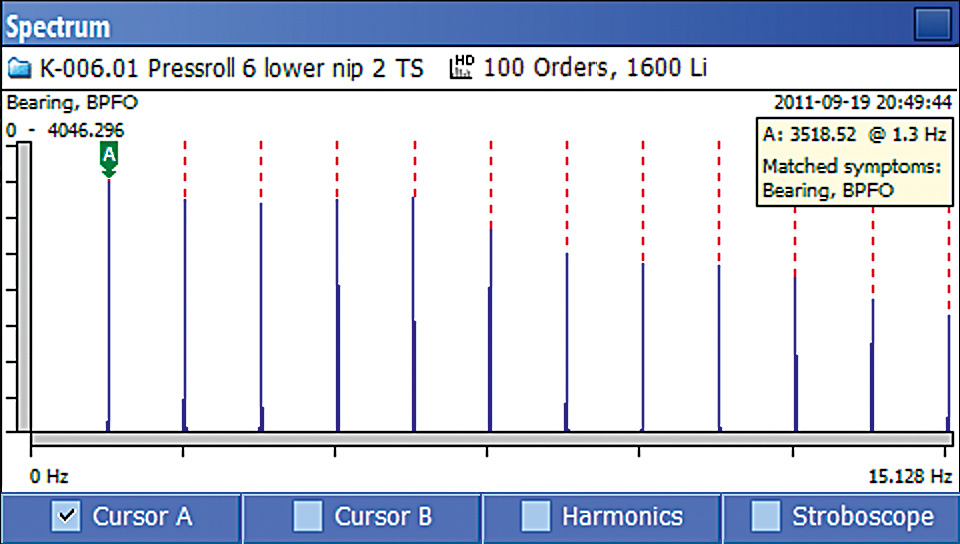

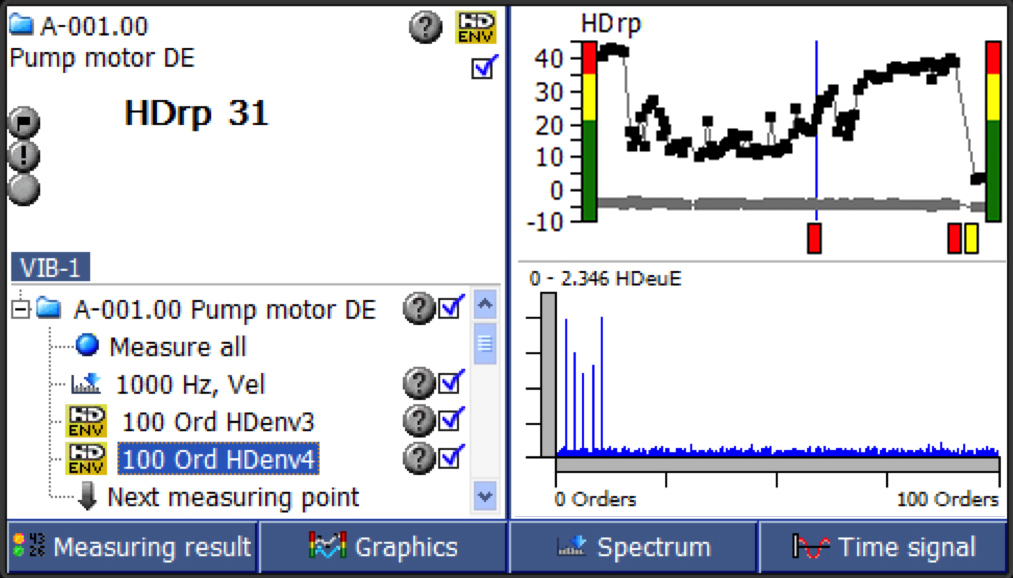

HD ENV® is a patented enveloping technique used for early detection of impact-related events such as gear and bearing damage. A number of predefined filters are available for easy selection; each designed to detect damages in different failure stages. The method utilizes cleverly engineered algorithms for digital signal processing to obtain optimal data for trending purposes.

Vibration severity plus FFT Spectrum

Measurement of vibration velocity, acceleration and displacement (0-40kHz frequency range) according to the latest ISO 10816 standards helps to diagnose general machine condition. In addition to the RMS vibration readings, the instrument displays an FFT spectrum, where symptoms of imbalance, misalignment, and structural weakness are easily identified.

Three-channel vibration analysis

Three-channel vibration measurement allows you to study machine movement in three dimensions by observing the difference of the phase angles measured on the three channels. The three channels measure simultaneously, which means fast operation and rapid evaluation of assignments.

EVAM

The EVAM (Evaluated Vibration Analysis Method) measuring technique produces up to 25600 line spectrum with true zoom, provides ready made machine 'fault symptoms' as well as trending.

Journal bearings

Orbit analysis

For all machines with journal bearings, simultaneous measurement with two vibration transducers supplies an accurate graph of the shaft centre line movement.

Resonance

Structural resonances

Run up/Coast down measurement and Bump test are tools for root cause analysis and show the machine frame vibration characteristics, resonance frequencies, and the reaction at critical speeds.

Corrective maintenance

Precision shaft alignment

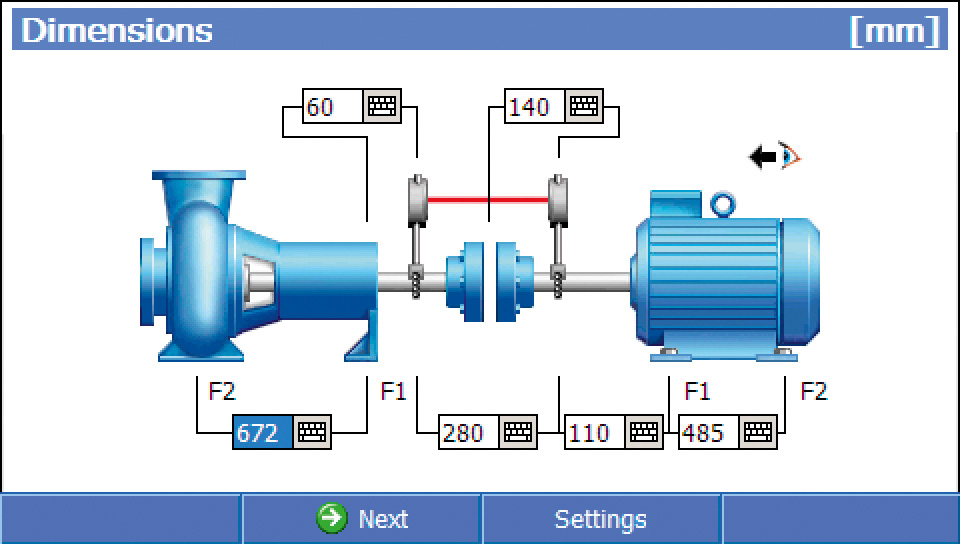

For laser alignment of horizontal and vertical machines, the optional LineLazer Alignment Kit connects wirelessly to Leonova Diamond, and the user is guided through the alignment procedure to a perfect result.

Dynamic balancing

Field rotor balancing in single and dual plane according to ISO 1940-1 standard with an initial vibration measurement guiding the user through a balancing procedure with suggestions for correcting the imbalance.

HD Order Tracking

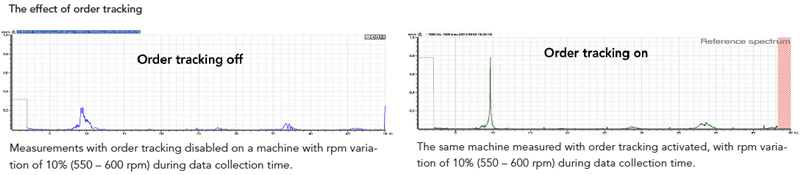

On machinery operating under variable speed, vibration analysis with HD Order Tracking provides reliable data and crystal clear measuring results even when RPM varies greatly during the course of measurement. Order Tracking is applicable in a very wide RPM range, from just a few to thousands of revolutions per minute.

Instrument

Dimensions: 297x130x69 mm
Weight: 890 g
Display: TFT colour, 480x272 pixels, 4.3 inch widescreen, adjustable backlight

Platform always included for unlimited use

• Platform function: SPM HDm/HDc and/or SPM LR/HR
• RMS vibration, ISO 2372
• Speed measurement

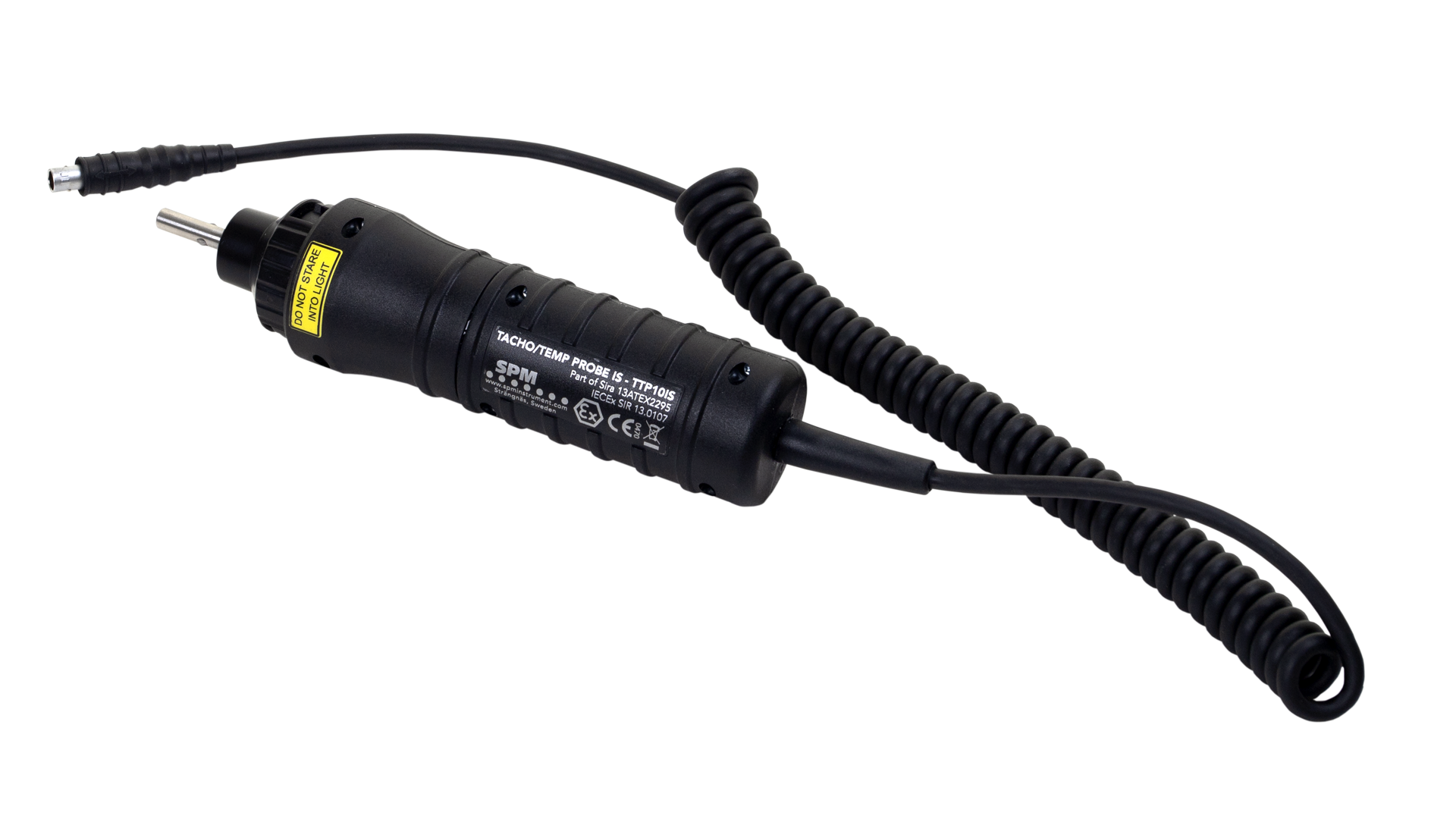

• Temperature measurement
• Stethoscope function
• Analog signals, current and voltage
• Time signal recording

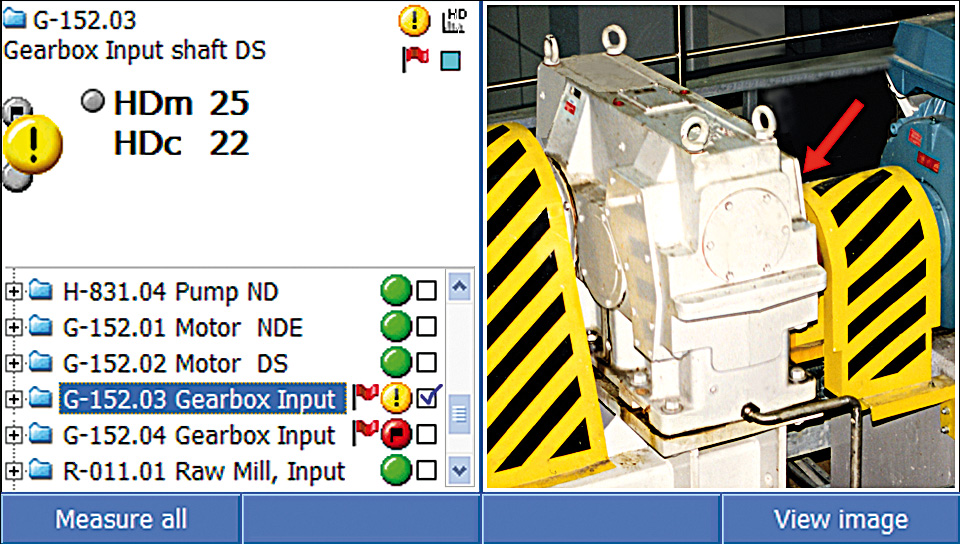

• Measuring point identification with CondID® memory tags
• Automatic recording, up to 50 hours
• Checkpoints, free text
• Recording of vocal comments

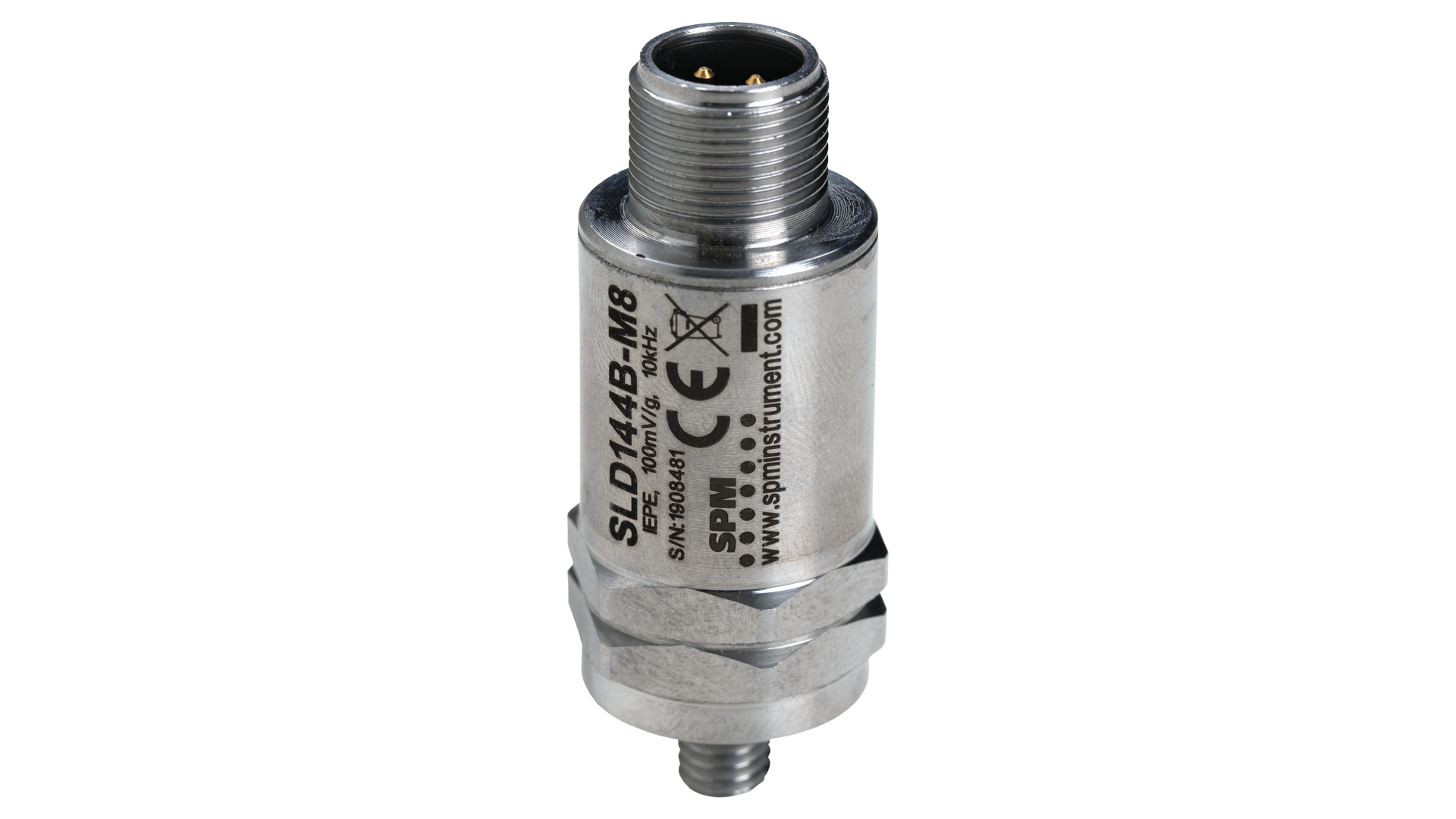

• Supports 2 channel simultaneous vibration measurements
• Supports up to 12 800 lines, 20 kHz

Functions for unlimited or limited use

Unlimited and limited functions can be combined at will.

• SPM HD Expert, time and frequency domain analysis
• Shock pulse method HDm/HDc
• Shock pulse method dBm/dBc
• Shock pulse method LR/HR
• SPM Spectrum
• Vibration ISO 10816 with spectrum
• Vibration ISO 20283-5
• Orbit analysis/Shaft centerline plot
• 3 channel simultaneous vibration
• Vibration Expert
       HD Order Tracking
       Time signal and 25 600 lines/40kHz
       HD ENV
       EVAM evaluated vibration analysis
       Post trigger
       Run up/coast down
       Bump test
       Frequency Response Function (FRF)
• Vibration Advanced
       HD Order Tracking
       Time signal and 12 800 lines/20kHz
       HD ENV
       FFT spectrum with symptoms
       Post trigger

• HD Analysis
       Vibration Expert
       SPM HD Expert

• Balancing, single and dual plane
• Shaft alignment

PORTABLE INTELLIGENCE IN CONVENIENT PACKAGE SOLUTIONS

With price cuts up to 30% off unbundled prices during this special offer, there has never been a better time to upgrade to this heavy-duty, high-performance instrument. Leonova Diamond® brings powerful analysis and troubleshooting capabilities to your condition monitoring program, and smart, superior-quality data to your IoT and Big Data systems.

This user-friendly data analyzer enables high-efficiency measuring routes with instant condition evaluation in green-yellow-red. Packages include the comprehensive software Condmaster Ruby® for further analysis of measurement data.
