Oil Contamination Monitoring sensor

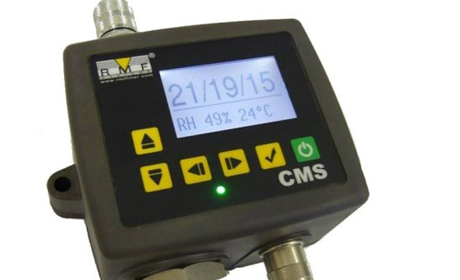

The CMS in-line contamination monitor (particle counter) automatically measures and displays particulate contamination, moisture, and temperature levels in various hydraulic fluids. Atex classified version available - CE II 3 G Ex nR IIB T6 X
It is designed specifically to be mounted directly to oil lubrication and hydraulic systems, where ongoing measurement or analysis is required, and where space and cost are limited.
Features
The water and temperature sensor option measures water content using a capacitive RH (relative humidity) sensor. The results are expressed as percentage saturation. 100% RH corresponds to the point at which free water exists in the fluid, i.e., the fluid is no longer able to hold the water in a dissolved solution.
Measuring results will be stored in Condmaster Ruby and presented in trend graphs with alarm limits.
Technical overview
| Formats: | ISO 4406:1999, NAS 1638, ES4059E Table 2, AS4059E Table 1, ISO 11218 |
| Accuracy: | ± 1/2 code for 4, 6, 14 μm (c), ± 1 code for larger sizes |
| Calibration: | Each unit individually calibrated with ISO Medium Test Dust (MTD) based on ISO 11171 (1999) on equipment certified by IFTS. |
| Hydraulic fluid compatibility: | Mineral oil and petroleum-based fluids (consult RMF Systems for other fluids) |
| Flow rate: | 20-400 ml/minute |
| Viscosity range: | max. 1000 cSt |
| Fluid temperature: | −25 °C to +80 °C |
| Maximum working pressure: | 420 bar |
| Electrical supply: | Voltage 9-36V DC |
| Seal material: | FPM (Viton) – Contact Des-Case regarding any fluids that are incompatible with FPM seals |
| Test time: | Adjustable 10 – 3600 seconds, factory set to 120 seconds |
| Moisture sensing: | % RH (Relative Humidity) ±3% |
| Temperature measurement: | ±3 °C |
| Flow rate measurement: | Indication only |
| Data storage: | 4000 tests |
| Communication options: | RS 485, RS 232, MODBUS, CANBUS, 4-20 mA |
| Ambient temperature: | −25 °C to +80° C or −25 °C to +55 °C for K version |
| IP rating: | IP 65/67 versatile IK04 Impact protection |
| Dimensions: | 123(H) x 142(W) x 65(D) mm |
| Weight: | 1.15 kg |
