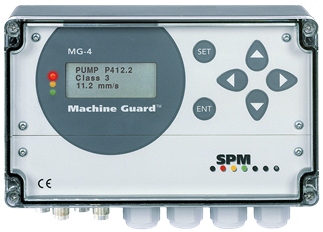

MG-4
Safeguard your plant stoppers and other essential machines. The MG-4 is a stand-alone continuous monitoring unit, ideal for automatic surveillance of unmanned machines.
It is an excellent starting point for measuring the state of individual machines, but will also serve as the mainstay of a larger, future online solution. A small and compact monitoring unit, sensors, and a few cables are all you need. MG-4 is a low-cost solution, simple to maintain and easy to scale up.
MG-4 uses the two most reliable methods for automatic machine fault detection. It provides shock pulse monitoring for early warning in case of inadequate bearing lubrication, stressed bearings, or the onset of damage; and maintenance alert in case of a significant increase in vibration severity. Measuring ranges, two-step alarm levels, alarm delays, and relay combinations can be programmed. Condition evaluation is automatic. There are no operating costs; install and feel safe.
COST-EFFICIENT
FLEXIBLE
AUTOMATIC SURVEILLANCE
By clicking “Submit”, you agree that your message and personal details will be sent by email to relevant recipient(s) at SPM Instrument. You hereby also agree that SPM Instrument and its subsidiaries will have access to the information you have provided and that these data will be stored on our email server. The data will not be saved in any other way. We will not use this information to contact you about matters other than those specified in your request. We will not share your information with third parties.
Features
The MG-4 family consists of four programmable measuring units for vibration severity (VIB) and bearing condition (SPM). The difference is in the channel combination:
MG-4 family differences |
||
| VIB channels | SPM channels | |
| MG4-1A | 1 | 0 |
| MG4-2A | 2 | 0 |
| MG4-12A | 1 | 2 |
| MG4-22A | 2 | 2 |
MG-4 provides:
- Display of measured value with continuous updates.
- Analog output 4-20 mA with programmable range in steps of 10 mm/s RMS (VIB) or 10 dB (SPM).
- Relays 250 V (1) and 125 V (2 for MG4-1, 4 for the others) with programmable alarm levels.
You can select the power supply (230 Vac, 115 Vac or 15 to 30 Vac/Vdc), the frequency range (lower frequency range 3, 10 or 100 Hz, upper 1000 or 2000 Hz) and the SPM technique (dBm/dBc or LR/HR). MG-4 has a casing for wall mounting (IP65). Measuring time, alarm levels, alarm delay and the channel/relay combinations are programmed, using the push buttons on the front panel.
MG4-Ref11
A special kind of MG4 is the MG4-Ref11, developed for the pulp and paper industry for continuous monitoring of refiners. This unit has been adapted to the special requirements for extremely fast measurements necessary to detect imminent disc segment failure.
A shock pulse transducer is mounted on the machine housing of the refiner so that mechanical shocks from the disc segments are picked up by the transducer with the smallest possible damping. The transducer is connected to MG4-REF11 which analyses the signals received, taking into account amplitude and frequence of occurence. It also measures the RMS value of the vibration velocity according to ISO 2372. If the disc segments run together, a relay is activated and a signal is given to open the disc gap. The display shows measurement results for both channels.
MG4-Ref11 is intended for use on refiners with one rotating disc segment.
