With Easy-Laser XT440, you can perform all necessary shaft alignment steps on horizontal, vertical, and flange-mounted machines. The user-friendly software, available in ten languages, guides you through the measurement process step by step.
Use the system together with the rugged Easy-Laser XT12 display unit or install the free XT Alignment app on your iOS or Android device*. Whatever you choose, the intuitive user interface is the same across all platforms.
*Click here for a list of compatible devices.
The measuring units and XT12 display unit are shockproof and rated both IP66 and IP67, water and dustproof. Along with long operating times, this guarantees you will be able to take on and finish even the toughest jobs.
Unique documentation possibilities
You can easily create and share a PDF report containing all measurement data and images from the app. If you use the XT12 display unit, it has a built-in 13MP camera but can also be equipped with an IR camera, which allows you to add a thermal image of the machine before and after alignment.
Measuring programs
The featured programs below are the most commonly used with this system. Please click here for a complete overview of possibilities.
*=accessories needed
Horizontal machines
The user interface is intuitive and guides you through the measurement process. It is animated and zooms into the most important things for each step. You can save the machine measurements 'As found' and 'As left 'in the same file.

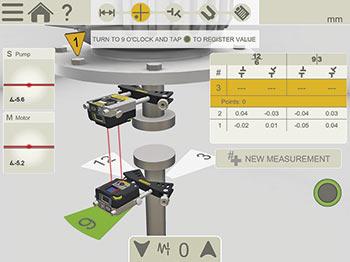

Vertical and flange-mounted machines

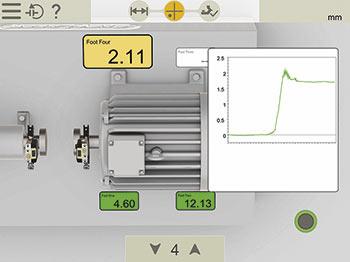

Soft foot check
Values – digital dial indicators

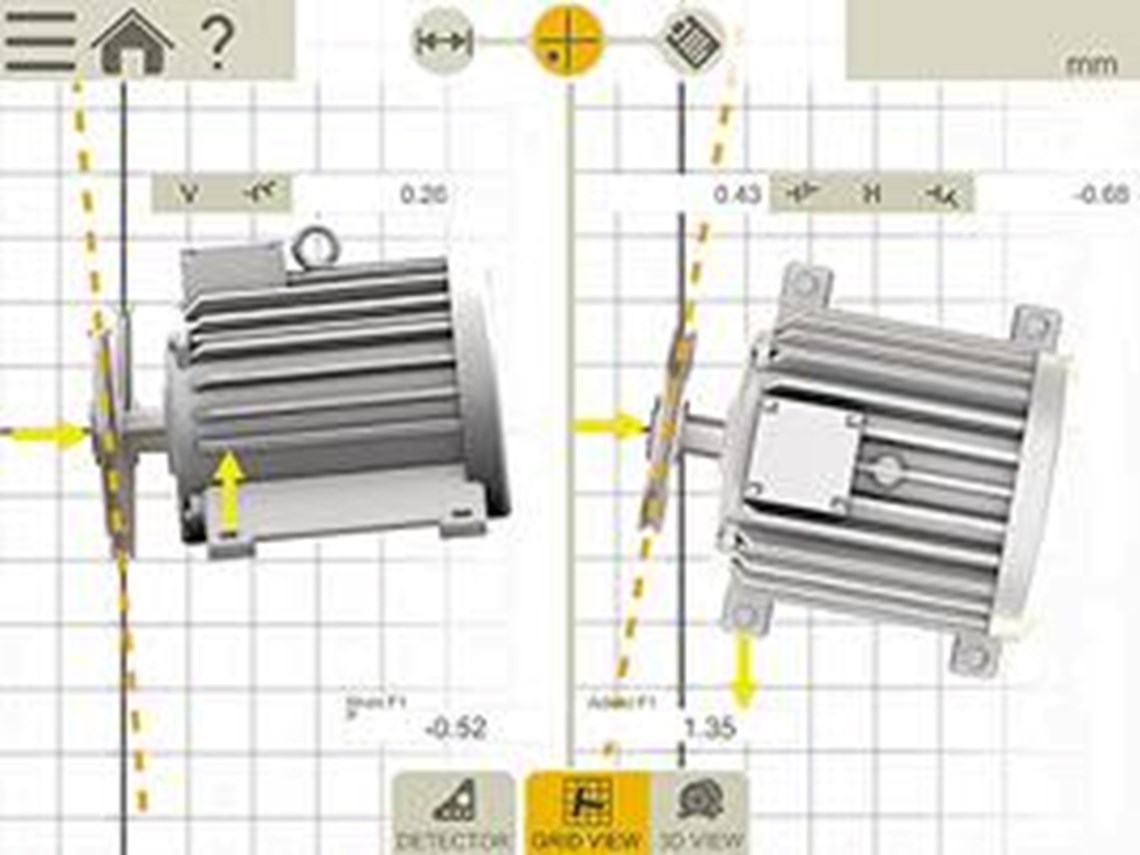

Belt alignment*

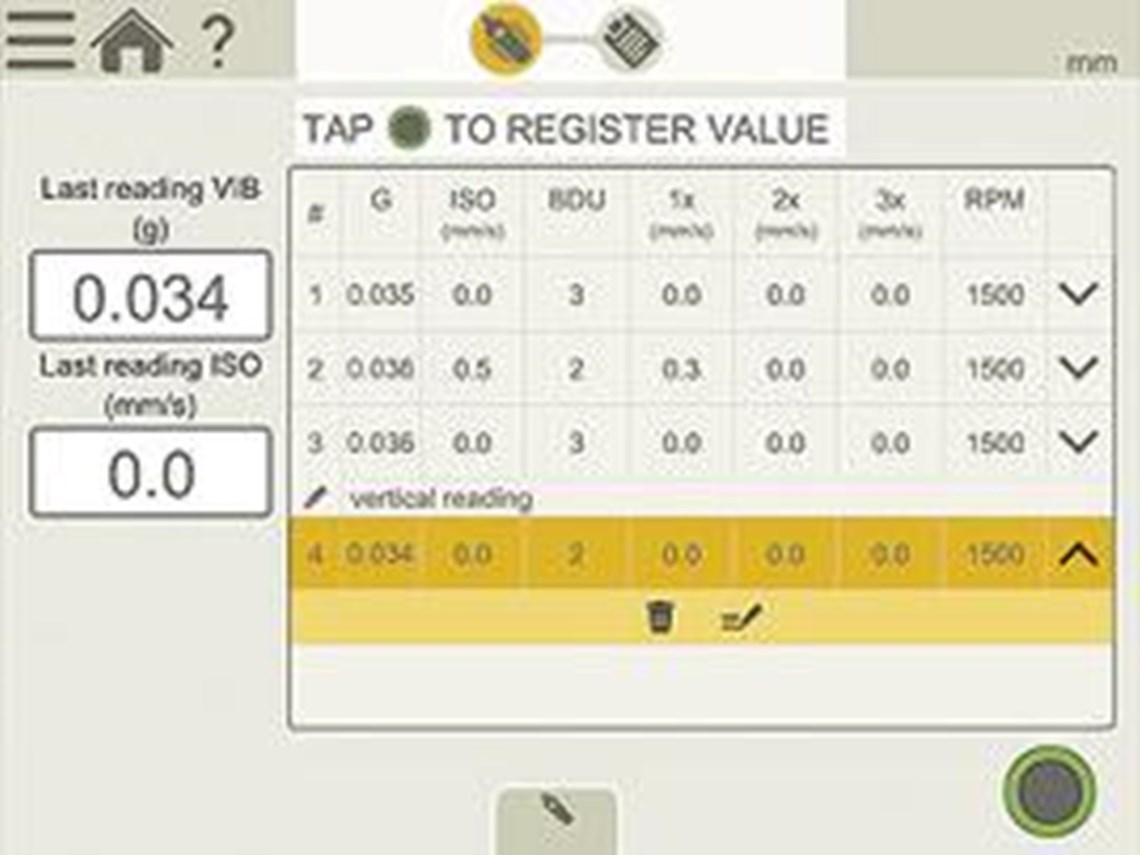

Vibration analysis*
Measurement methods
9-12-3
Measurement points are recorded at fixed points 9, 12, and 3 o’clock. This is the classic three-point method that can be used in most cases.
EasyTurn™ function
The EasyTurn™ function allows you to begin the measurement process from anywhere on the turn. You can turn the shaft to any three positions with as little as 20° between each position to register the measurement values. Voila! Measurement is complete!
Technical overview
Display unit
| Name: | XT12 |
| Type of display/size: | 8" LCD capacitive multi-touch colour display |
| Internal battery (fixed): | Heavy-duty Li-Ion chargeable |
| Connections: | USB A, USB C, Charger, AV |
| Operating temperature: | −10 to 50 °C |
| Storage temperature: | −20 to 50 °C |
| Communication: | Wireless technology, Wi-Fi |
| Relative humidity: | 10 to 95% |
| Camera: | 13 Mp, autofocus, with LED diode lamp |
| IR camera (optional): | FLIR LEPTON® (0–400 °C, 32–75 °F) |
| Help functions: | Built-in manual |
| Environmental protection: | IP class 66 and 67 |
| Housing material: | PC-TPE or PC-TPU |
| Dimensions (WxHxD): | 269.0x190.0x49.4 mm [10.59x7.48x1.95"] |
| Weight: | 1400 g [49.4 oz] |
| Operating time: | Up to 16 h continuously |
Measuring units
| Name: | XT40-M / XT40-S |
| Communication: | BT wireless technology |
| Type of detector: | TruePSD 30 mm [1.2”] |
| Resolution: | 0.001 mm [0.05 mils] |
| Measurement accuracy: | ±5µm ±1% |
| Measurement range: | Up to 10 m [33 feet] |
| Type of laser: | Diode laser |
| Laser wavelength: | 630–680 nm |
| Laser class: | Safety class 2 |
| Laser output: | <1 mW |
| Electronic inclinometer: | 0.1° resolution |
| Environmental protection: | IP class 66 and 67 |
| Operating temperature: | −10 to 50 °C |
| Internal battery: | Heavy-duty Li-Ion chargeable |
| Storage temperature: | −20 to 50 °C |
| Relative humidity: | 10 to 95% |
| Housing material: | Anodized aluminium + PC/ABS + TPE |
| Dimensions (WxHxD): | 76x76.7x39.3 mm [3.0x3.0x1.5”] |
| Weight: | 245 g [8.6 oz] |
| OLED display: | 128x64 pixels |
| Operating time: | >24 h continuously |
System parts

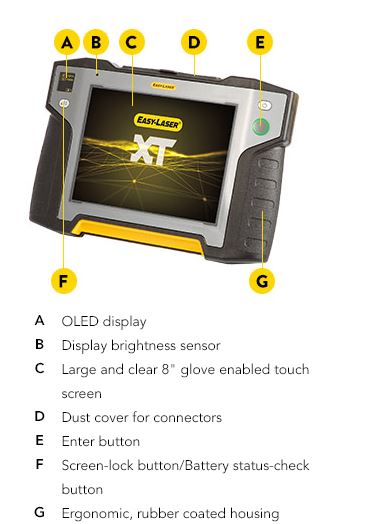

Display unit XT12
Rugged, robust, rubber-coated design. IP66 and 67, dust- water- and shockproof. As standard, a 13 MP camera for documentation is built-in*, and you can also choose to add an IR camera to the XT11.
Glove-enabled touch screen
A large 8", glove enabled touchscreen makes the information clear and the app easy to use. The small OLED display shows the battery status of both measuring and display units. You can check the battery status also when the unit is turned off. The clever lock-screen button prevents unintentional clicks, for instance, when moving between work positions.
*The camera can be removed if security reasons require.
Features
- Robust, rubber-coated design, IP66/67.
- Large 8" glove enabled touch screen.
- Screen-lock button.
- OLED display shows the battery status.
- IR camera for thermal images (optional).
- 16 hours of operating time.

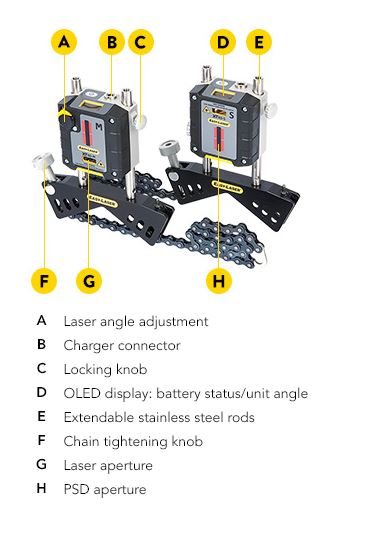

Measuring units XT40-M / XT40-S
The XT40 measuring units have a large, 30 mm PSD [1.2”] and state-of-the-art OLED display that shows the unit's angle, making it easier to position it on the shaft. The line laser technology provides a fast setup and measurement process.
Rigid and rugged
The diagonally positioned fastening screws set the unit in a grid-lock on the rods. Rigid aluminum housing for maximum stability. IP66 and 67, dust- water- and shockproof. Heavy-duty battery for very long operating times. Built-in wireless technology.
Features
- Built-in wireless technology. Integrated rechargeable battery
- True PSD technology with an unlimited resolution for greatest accuracy
- Dual laser beams and PSDs
- Sturdy aluminum body. IP66/67 design
- OLED display shows the angle of the unit
- 24 hours of operating time

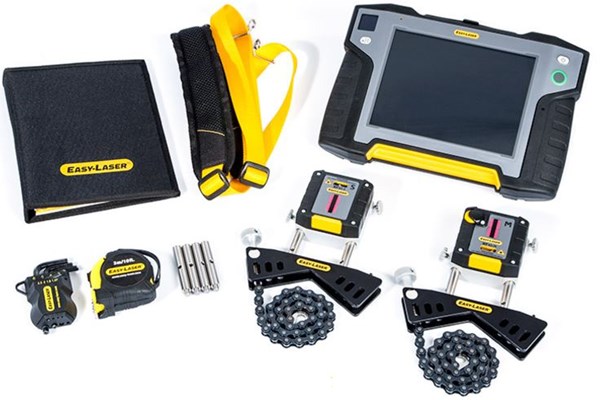

A complete system contains
XT440 Shaft with Display unit XT12
- 1 display unit XT12
- 1 measuring unit XT40-M
- 1 measuring unit XT40-S
- 2 shaft brackets with chains and rods
- 4 rods 60 mm [2.36”]
- 1 tape measure 3 m [9.8’]
- 1 hexagon wrench set
- 1 charger (100–240 V AC)
- 1 DC split cable for charging
- 1 DC to USB adapter for charging
- 1 shoulder strap for the display unit
- 1 Quick reference manual
- 1 cleaning cloth for optics
- 1 USB memory with manuals
- 1 documentation folder
- 1 carrying case Medium (460x350x175 mm, 7.2 kg)
XT440 Shaft
- 1 measuring unit XT40-M
- 1 measuring unit XT40-S
- 2 shaft brackets with chains and rods
- 4 rods 60 mm [2.36”]
- 1 tape measure 3 m [9.8’]
- 1 hexagon wrench set
- 1 charger (100–240 V AC)
- 1 DC split cable for charging
- 1 DC to USB adapter for charging
- 1 Quick reference manual
- 1 cleaning cloth for optics
- 1 USB memory with manuals
- 1 carrying case Small (335x280x130 mm, 3.8 kg)
